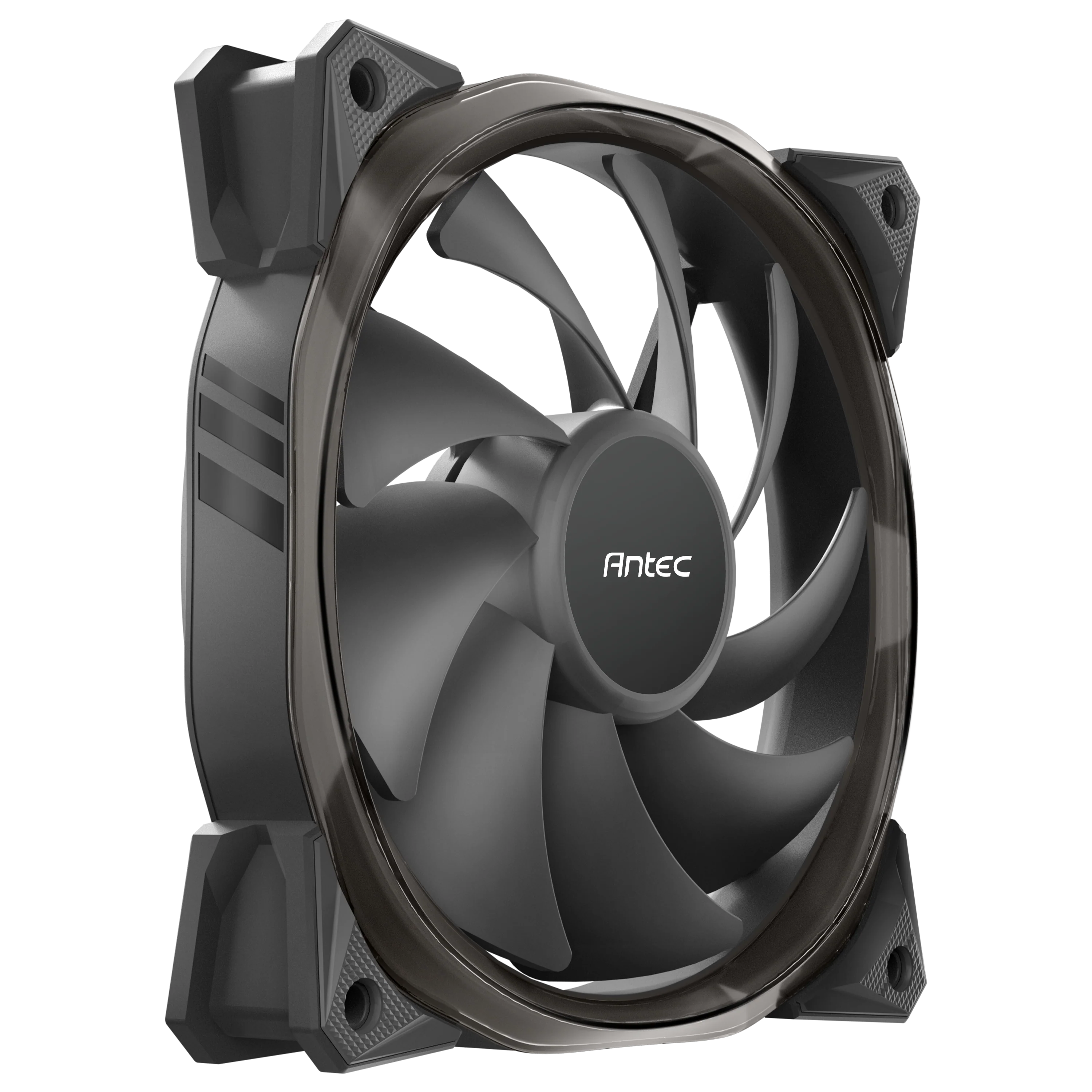

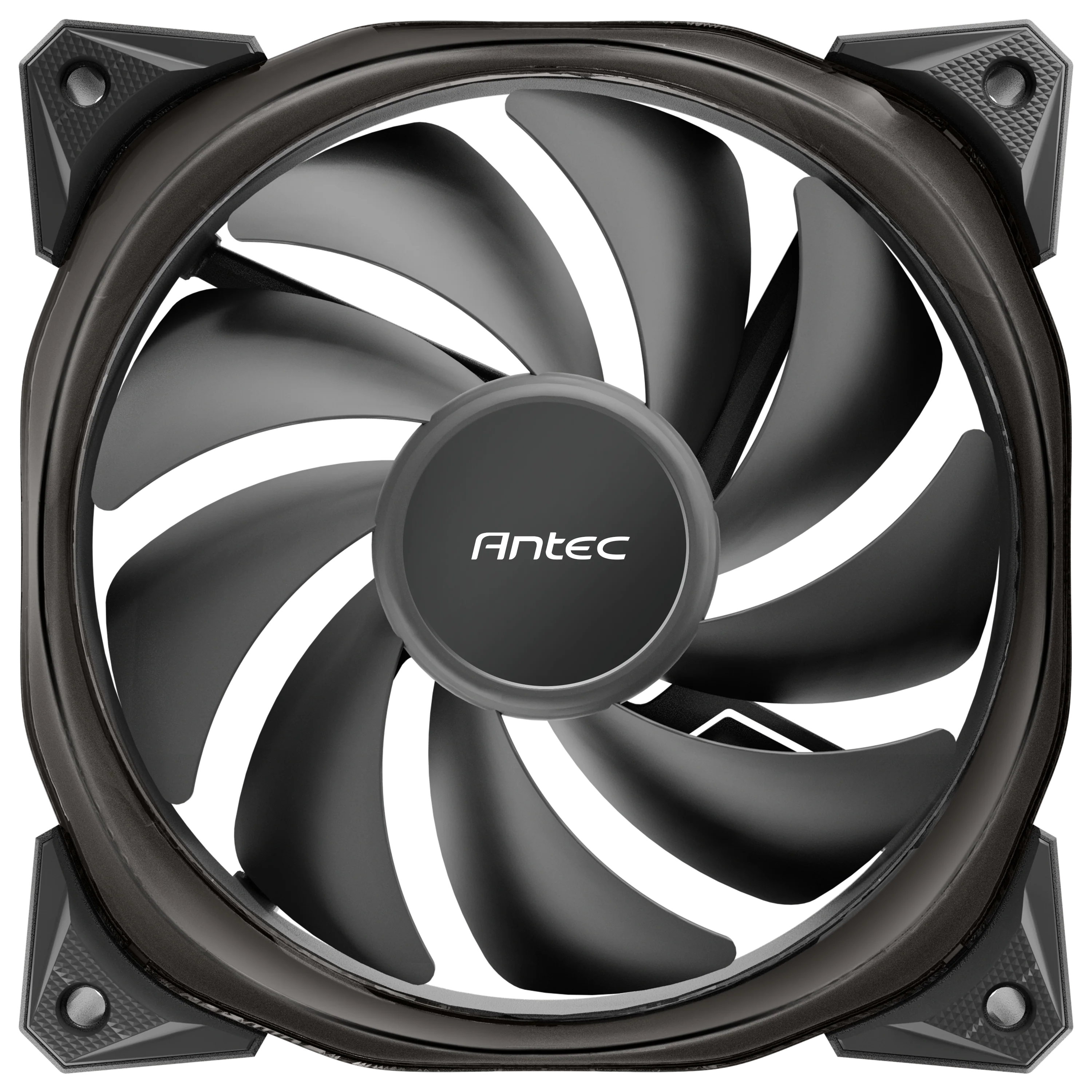

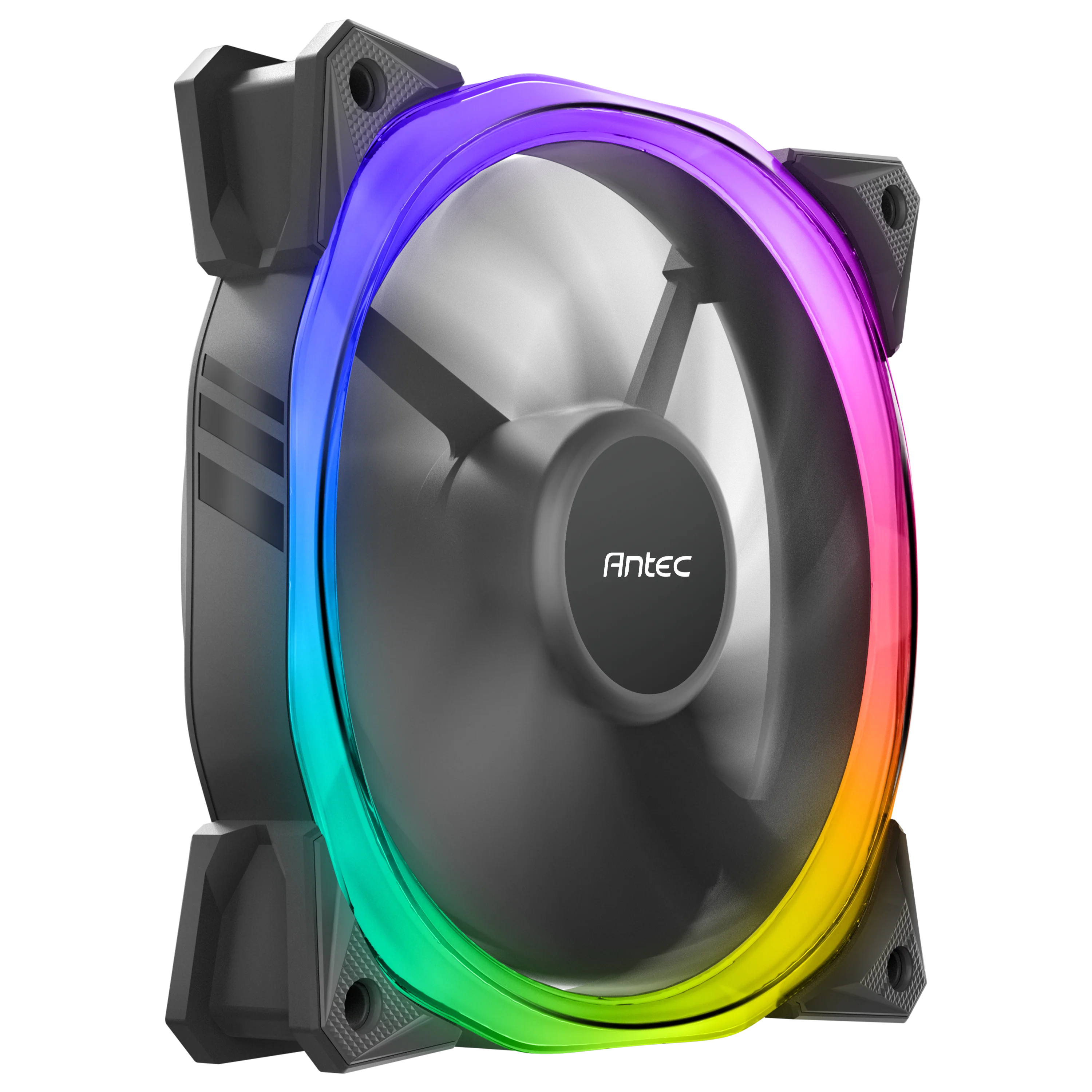

Fusion 120 ARGB
SPECIFICATIONS
| Fan |
| Model Name |
Fusion 120 ARGB |
| Fan Type |
PWM Fan |
| Dimensions |
120*120*25 mm |
| Bearing Type |
Hydraulic Bearing |
| LED Type |
Addressable RGB |
| Fan Speed |
600±200~2000±10% RPM |
| Airflow |
57.93 CFM (max.) |
| Air Pressure |
2.11 mmH₂O (max.) |
| Fan Noise Level |
17.02~31.24 dB(A) |
| Lifespan |
40,000 hours /hrs 25°c |
| Connector |
FAN: 4-pin PWM | LED: 3-pin |
| Rated Voltage |
FAN: DC 12 V | LED: DC 5 V |
| Operation Voltage |
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V |
| Rated Current |
FAN : ≤ 0.21 A | LED : ≤ 0.58 A |
|
| Warranty |
|
|
